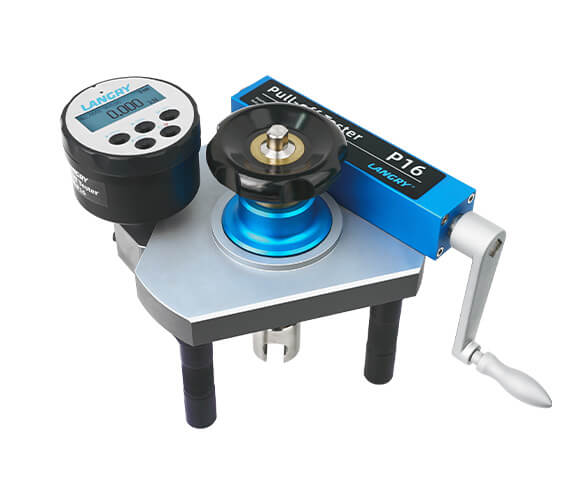

P16 is a multifunctional pull-off tester for bonding strength evaluation of mortar, asphalt, tiles, coatings, and protective layers. Its compact integrated design supports convenient field testing with stable mechanical output.
Model
P16
Stroke of hydraulic cylinder
5 mm
Measuring range
1.6-16 kN
Resolution
0.001 kN (0.01 MPa, 1 psi)
Accuracy
EN ISO 7500-1 Class 1 (+/-1%, from 20% of maximum force)
Technical advantages
Integrated structure combines hydraulic loading and digital pressure indication in one compact unit.
High-strength aluminum alloy body offers lightweight handling with good durability.
Built-in interrupted spiral oil pump pressurization system improves operation efficiency.
No pre-unscrewing of rocker screw required before testing, simplifying on-site workflow.
Peak hold function supports easier reading and recording of maximum force values.
Typical applications
Bond strength testing of mortar and plaster layers.
Adhesion verification for tile systems and protective coatings.
Field quality inspection for bonded construction materials.
