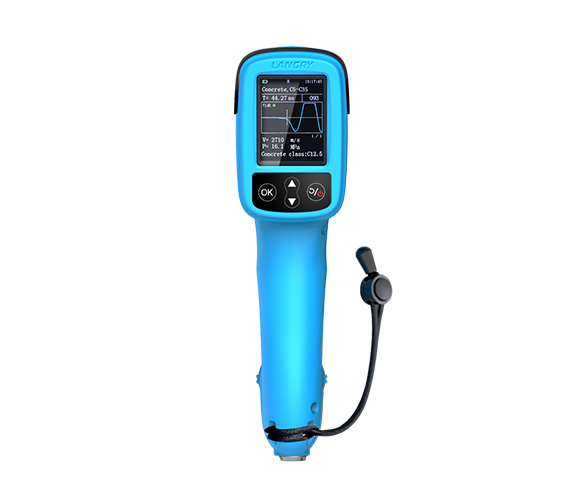

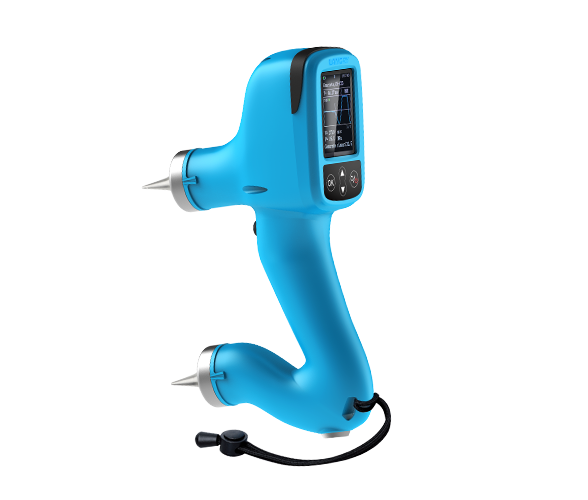

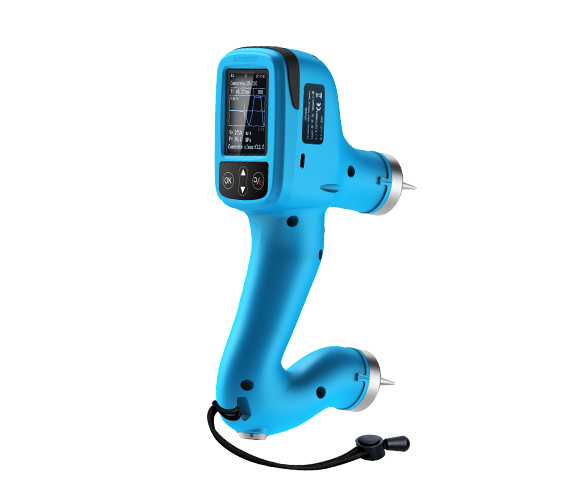

UPV2100 is an ultrasonic pulse velocity tester for concrete strength\density\Crack depth. By measuring pulse travel time and propagation speed, it supports non-destructive assessment of internal quality, uniformity, and potential defects such as cracks and voids.
Model
UPV2100
Measurement range of ultrasonic pulse velocity
1000-10000 m/s
Measurement range of integrated pulse propagation time
10-100 us
Integrated pulse propagation time display range
10-120 us
Integrated transducer center distance
120 +/- 1 mm
Ultrasonic oscillation frequency
50 +/- 10 kHz
Power supply voltage
Built-in battery power supply, 3.7 +/- 0.5 V
Power consumption
<= 5 W
Main unit weight
<= 0.7 kg
Main unit dimensions (L x W x H)
235 x 65 x 135 mm
Standard
ISO/DIS 8045 International EN 12 504-2 Europe BS 1881, part 202 Great Britain DIN 1048, part 2 Germany NFP 18-417 France B 15-225 Belgium ENV 206 Europe-ASTM C 805 USA JGJ/T 23-2011 China
Introduction
UPV2100 estimates ultrasonic wave speed by combining measured travel distance and time. It helps evaluate concrete density and elasticity characteristics, and supports identification of internal defects including cracking and void-related discontinuities in structural members.
Technical advantages

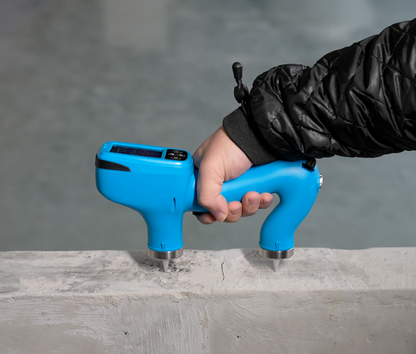

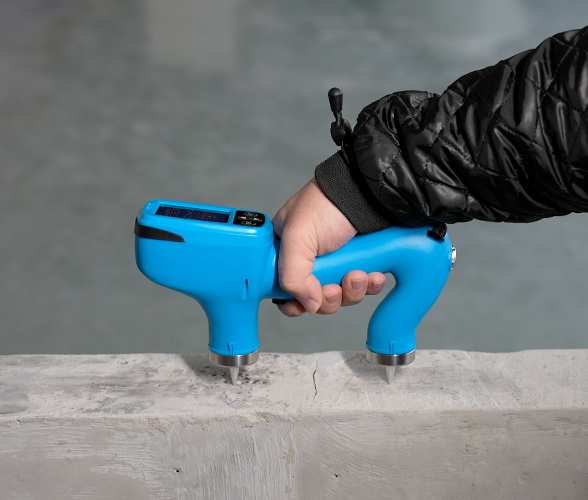

Integrated handheld structure enables straightforward operation in field testing conditions.
Multiple testing modes support different inspection workflows and component types.

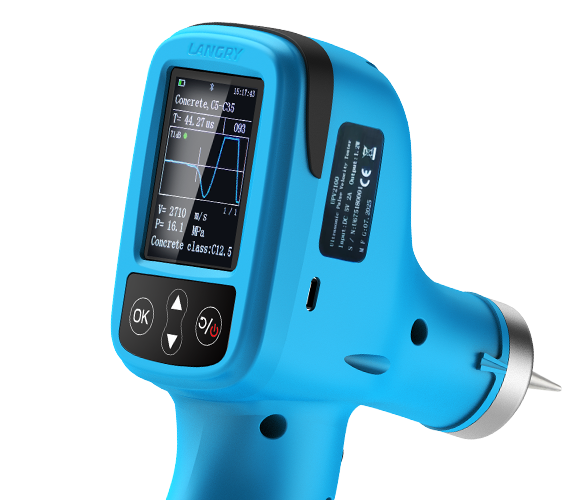

Waveform acquisition and display improve interpretation of complex measurement responses.

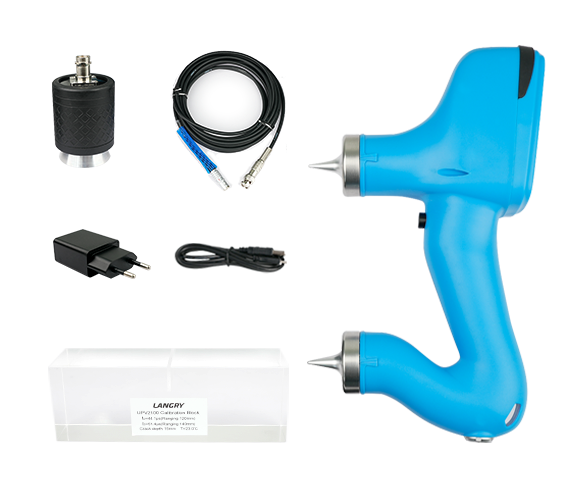

External transducer compatibility allows flexible setup for higher-accuracy scenarios.
Data analysis software support improves result management and reporting efficiency.
Typical applications
Concrete quality evaluation in buildings, bridges, and infrastructure components.
Detection of internal defects such as cracks, voids, and poor compaction zones.
Comparative structural inspection during construction, acceptance, and maintenance stages.
