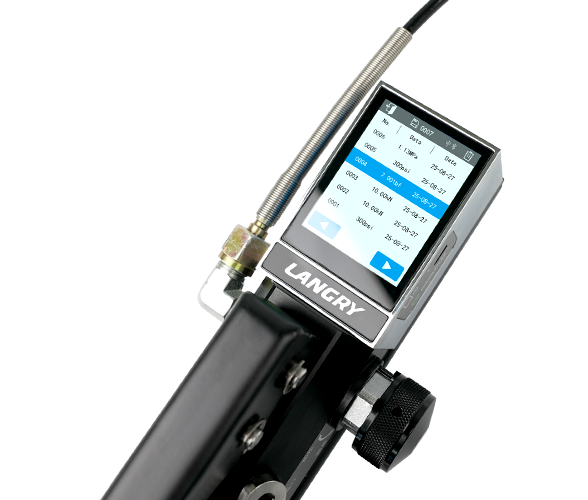

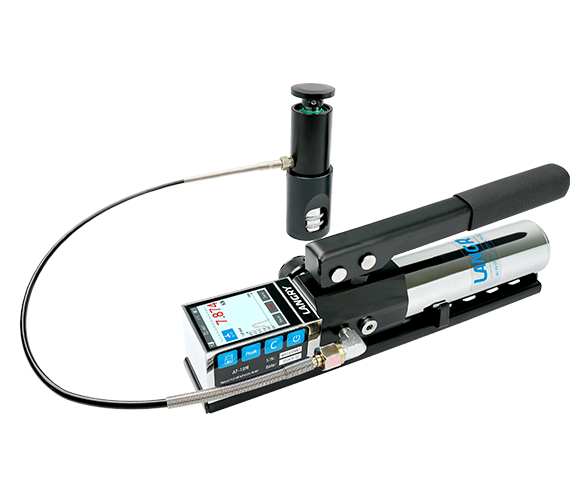

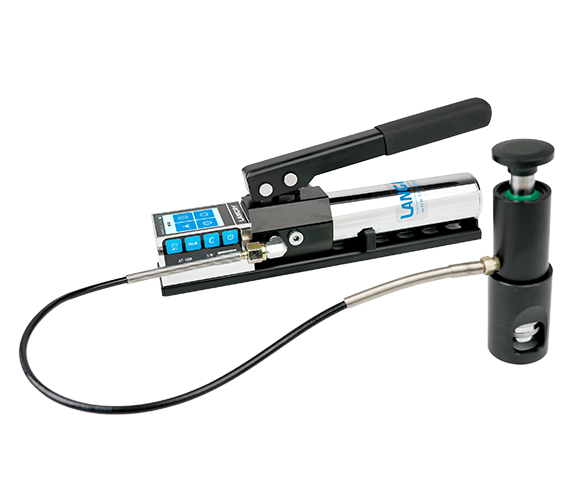

AT10-M is a portable adhesion tester for pull-off strength verification of coatings and bonded layers. It is suitable for both laboratory and on-site testing with stable hydraulic output and compact handheld operation.
Model
AT10-M
Resolution
1 psi (0.01 MPa)
Accuracy
EN ISO 7500-1 Class 1 (+/-1%, from 20% of maximum force)
Cylinder stroke
10 mm
Measuring range
0-10 kN
Storage
4000 records
Endurance
15 hours
Display
2.8-inch color LCD touch screen
Standard
ASTM D4541; ASTM D7234
Technical advantages
Portable handheld design for flexible use in lab and field conditions.

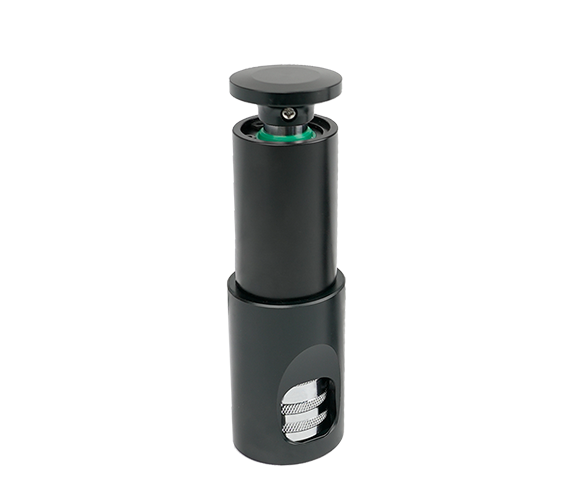

Self-aligning aluminum spindle helps improve measurement consistency on flat and curved surfaces.
Hydraulic loading supports smooth and continuous pressure application.

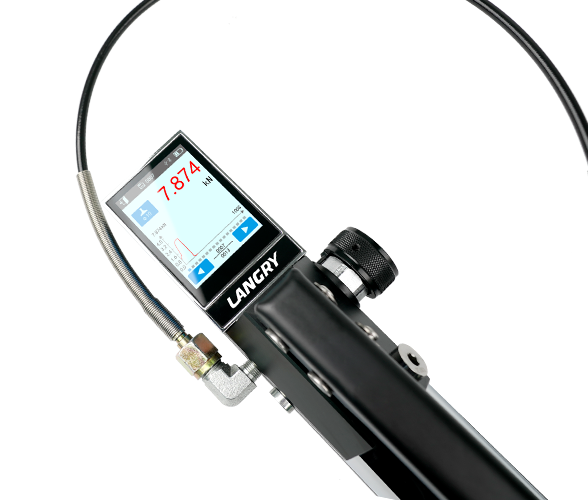

Force-time curve and load value are displayed together for clear process review.
Multiple unit options (psi, MPa, kN) and stable calibrated pressure output.
