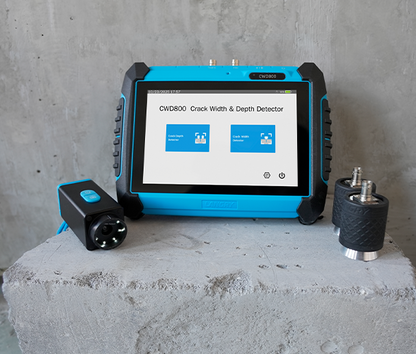

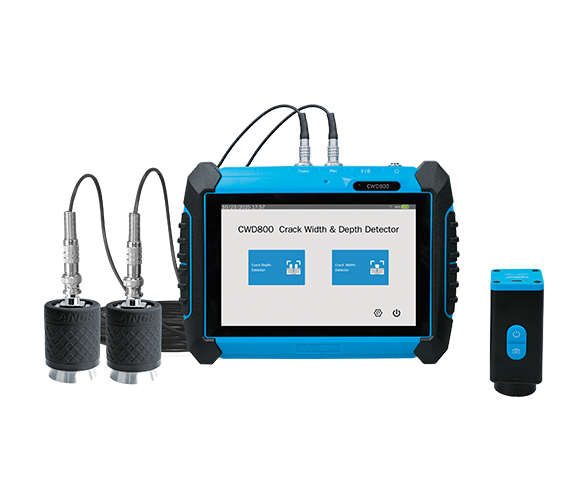

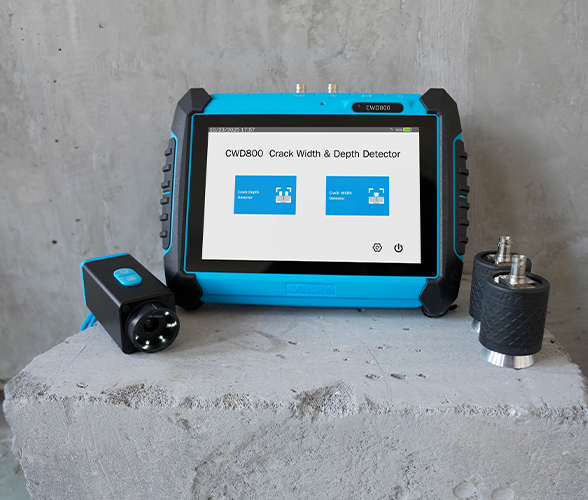

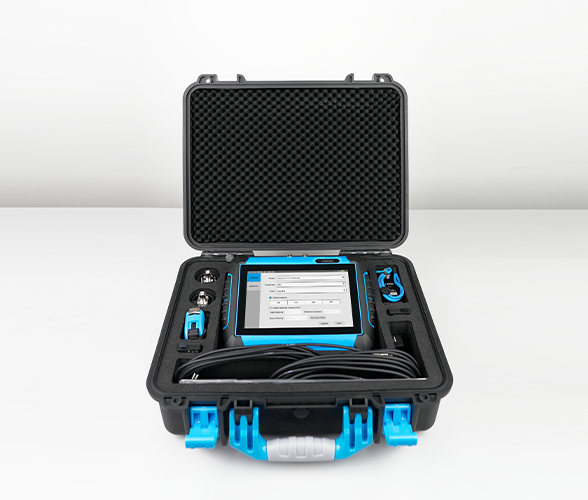

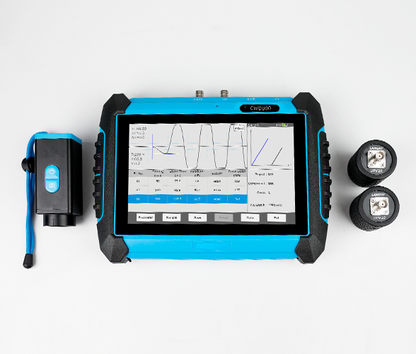

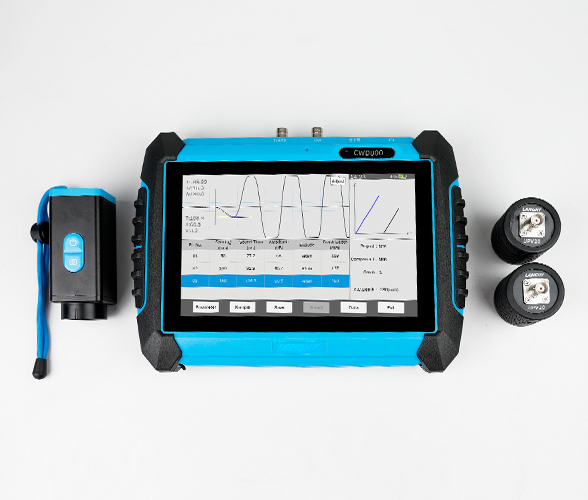

CWD800 is an integrated crack width and depth tester combining ultrasonic detection and microscopic imaging. It is designed for high-precision inspection of surface crack conditions in non-metallic materials such as concrete, graphite, and nylon.
Model
CWD800
Number of channels
Dual channel
Display mode
8-inch color LCD, 1280 x 800 resolution
Storage capacity
16G
Sampling interval
0.05 us-1 us multi-range selectable
Sampling length
512-4096 points, selectable levels
Transmitting voltage
65-1000 V, multiple levels available
Data transfer
U-disk export
Host power supply
6360 mAh, 10.8 V rechargeable lithium battery
Probe power supply
3.85 V rechargeable lithium battery
Product size
Main unit: 258 x 188 x 52 mm
Transducer: Phi 43 x 74 mm
Probe: 42 x 42 x 100 mm
Depth measurement range
Less than or equal to 500 mm
Depth measurement accuracy
+/-5 mm for seam depth less than or equal to 50 mm; accuracy greater than or equal to 10% for seam depth greater than 500 mm
Width measurement range
0-10 mm
Width measurement accuracy
+/-0.01 mm
Standard
ISO/DIS 8045 International EN 12 504-2 Europe BS 1881, part 202 Great Britain DIN 1048, part 2 Germany NFP 18-417 France B 15-225 Belgium ENV 206 Europe-ASTM C 805 USA JGJ/T 23-2011 China
Introduction
CWD800 provides two core functions in one platform: crack depth measurement and crack width measurement. It supports efficient on-site crack inspection and helps engineers evaluate structural surface conditions with quantitative data.
Technical advantages
Dual-function design supports both crack depth and crack width testing.
Automatic first-wave search during ultrasonic acquisition improves workflow efficiency.
High-definition camera captures crack images and displays width values in real time.
Portable crack positioning ruler helps quick alignment and repeatable testing.
Professional analysis software supports data processing and report generation.
Typical applications

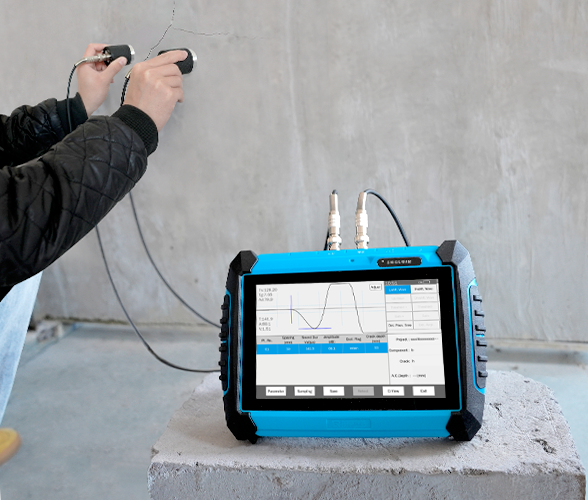

Surface crack inspection for concrete structures and prefabricated components.
Condition evaluation for non-metallic materials such as graphite and nylon.
Quality control, maintenance diagnostics, and acceptance inspection workflows.
