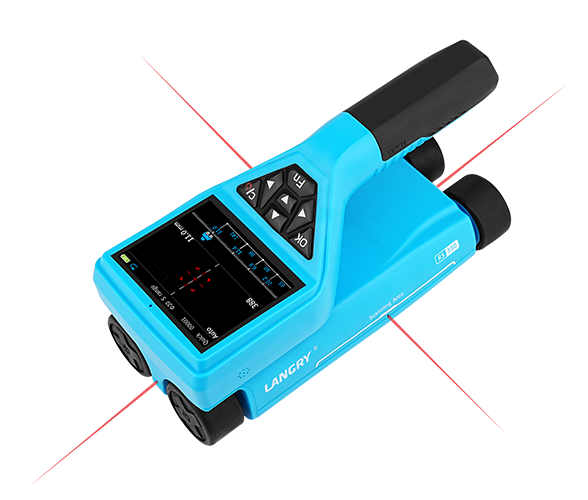

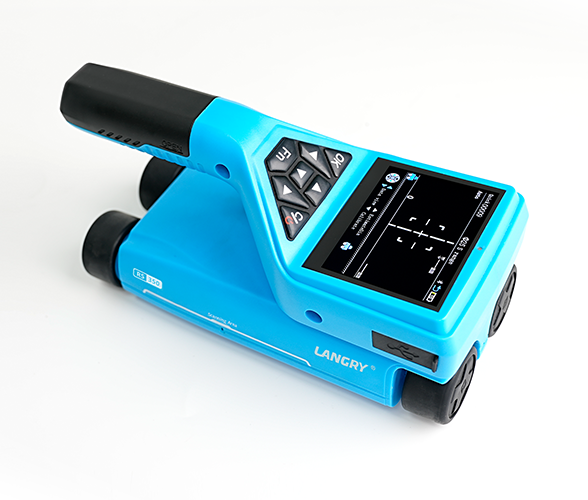

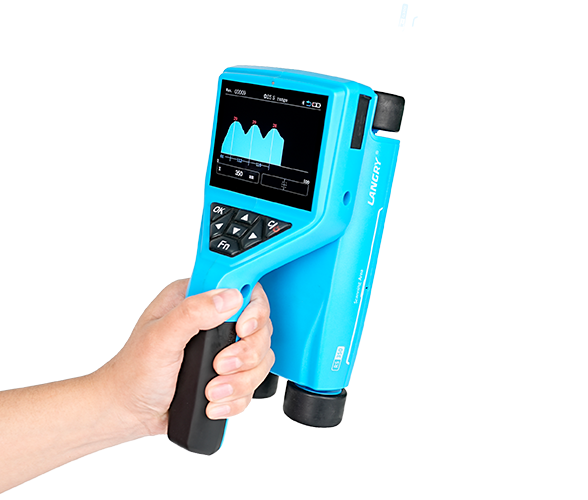

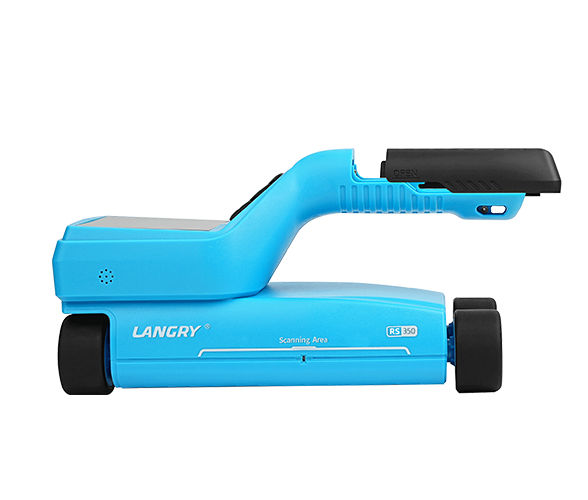

RS350 Intergrated Rebar Scanner

RS350 Intergrated Rebar Scanner

$3,099.00 AUD
$3,099.00 AUD
Sale Sold out
Taxes included.

Model

RS350

Rebar diameter range

Phi 6-Phi 50 mm

Maximum detection range

First range: 1-120 mm
Second range: 1-210 mm

Allowable deviation of concrete cover depth

+/-1 mm: 1-80 mm
+/-2 mm: 81-120 mm
+/-3 mm: 121-160 mm
+/-4 mm: 161-210 mm

Applicable diameter estimation range

Phi 6-Phi 50 mm

Diameter estimation deviation

Within +/-1 specification grade

Display accuracy

0.1

Language support

Multi-language interface

Main features

  • High-precision sensors for stable and repeatable rebar signal detection.
  • The linked app generates and exports 3D images of the rebar distribution.

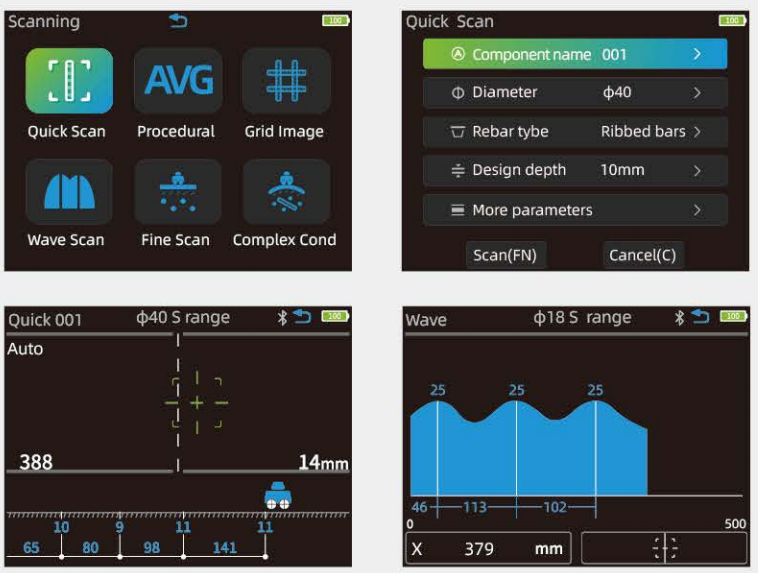

  • Integrated workflow supports quick scan, profile scan, and grid image display.
  • Designed for locating rebar, checking cover depth, and assisting diameter assessment.

Typical applications

  • Rebar positioning and spacing verification in reinforced concrete members.
  • Concrete cover thickness inspection before drilling, coring, or retrofit work.
  • Preliminary rebar diameter estimation for structural evaluation workflows.
