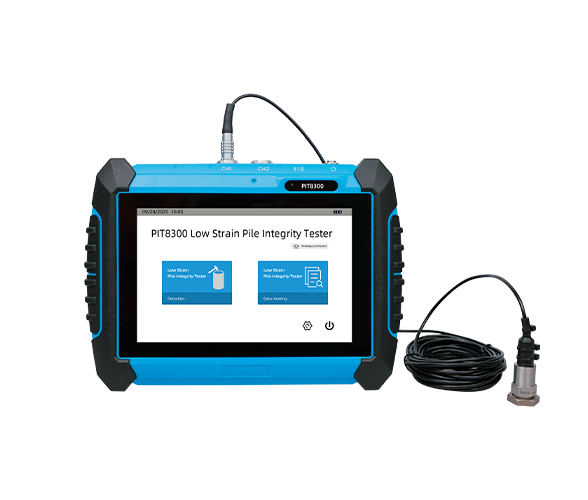

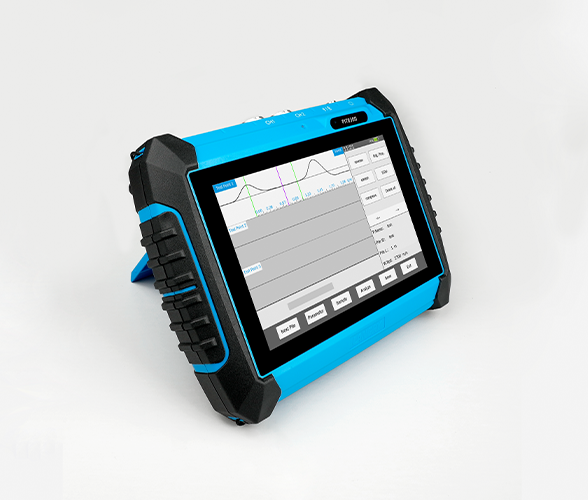

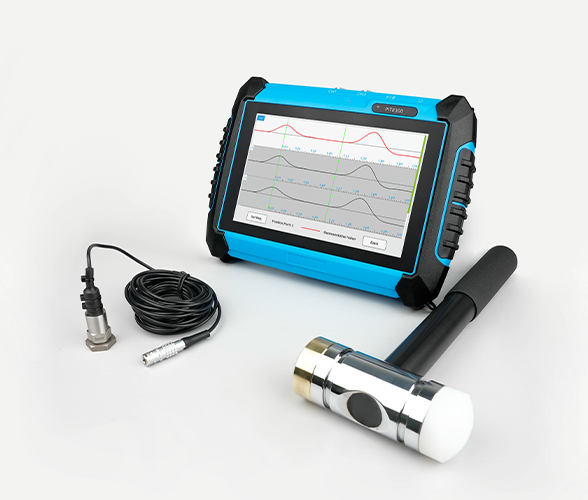

PIT8300 is a portable low strain pile integrity tester used to evaluate concrete foundation pile quality with reflection-wave analysis. It helps identify potential defects and supports location assessment of abnormal sections in pile shafts.
ISO/DIS 8045 International EN 12 504-2 Europe BS 1881, part 202 Great Britain DIN 1048, part 2 Germany NFP 18-417 France B 15-225 Belgium ENV 206 Europe-ASTM C 805 USA JGJ/T 23-2011 China
Technical advantages
24-bit high-precision A/D acquisition supports clear and stable waveform capture.
Real-time waveform processing includes smoothing, integration, filtering, and selectable amplification methods.
Signal superposition function helps suppress noise and improve interpretation quality.
Dedicated PC software supports advanced data analysis and customizable report output.
Multiple sampling lengths and trigger settings increase adaptability for different pile conditions.
Introduction

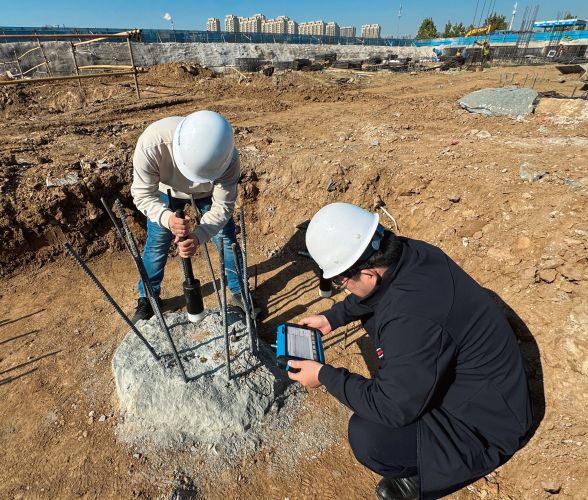

The low strain reflection-wave method is suitable for integrity checks of concrete pile shafts. PIT8300 supports rapid field testing and helps estimate the extent and position of defects for engineering quality control and acceptance inspection.
Typical applications
Integrity screening of cast-in-place and precast concrete foundation piles.
Quality verification during construction, acceptance, and maintenance stages.
Abnormal waveform analysis for potential defect localization in pile shafts.
