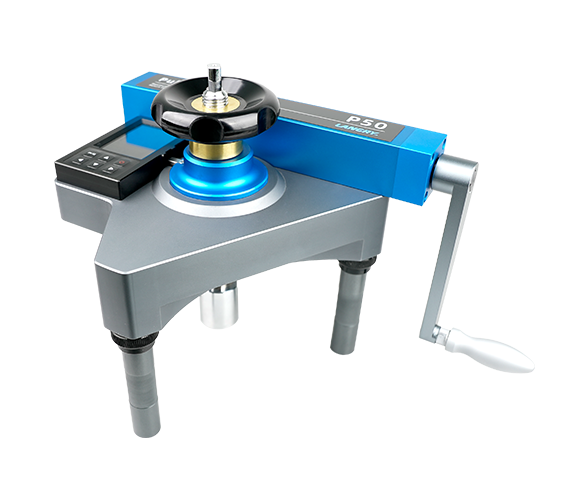

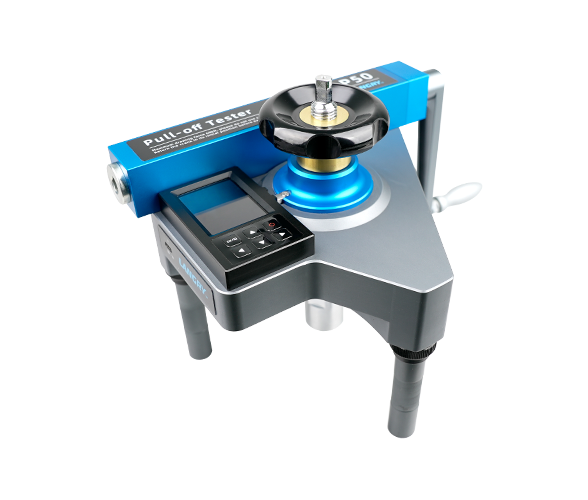

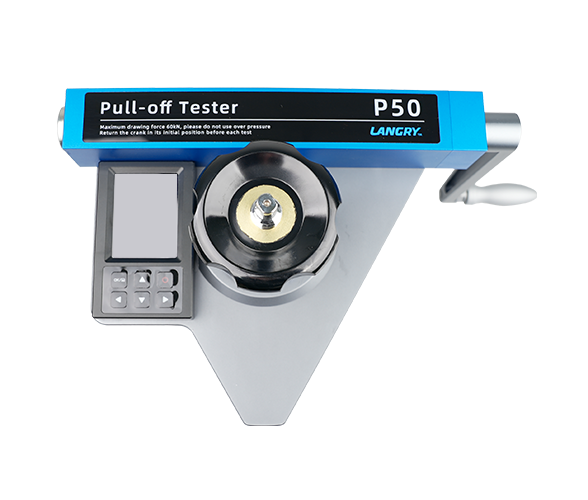

P50 is a pull-off tester used for concrete-related adhesion and anchorage force evaluation. It is suitable for non-destructive testing workflows involving bond strength checks, anchor retention assessment, and practical field verification.
Model
P50
Stroke of hydraulic cylinder
10 mm
Measuring range
5-50 kN
Resolution
0.001 kN (0.01 MPa, 1 psi)
Accuracy
EN ISO 7500-1 Class 1 (+/-1%, from 20% of maximum force)
Display mode
kN / MPa / psi
Introduction
P50 is a versatile pull-off tester for concrete bond and anchorage verification. It supports multiple interchangeable test heads, allowing quick adaptation to different testing methods and site conditions.
Technical advantages
Integrated design combining oil pressure system and digital pressure gauge.
High-strength aluminum alloy body for lightweight operation and durable service.
Loading speed prompt function helps keep testing workflow aligned with requirement criteria.
Force-time curve and load value can be viewed on one screen for complete process tracking.
Easy calibration and stable force response with minimal temperature-related drift.
Test method examples
Pull-off method: test block and adhesive.
Post anchoring method: fill with anchoring adhesive and wait for complete curing.
After-loading and pulling-out method: expansion spring and expansion rod setup.
