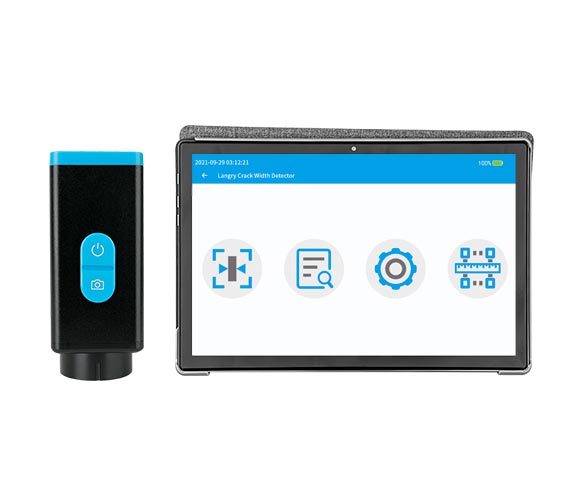

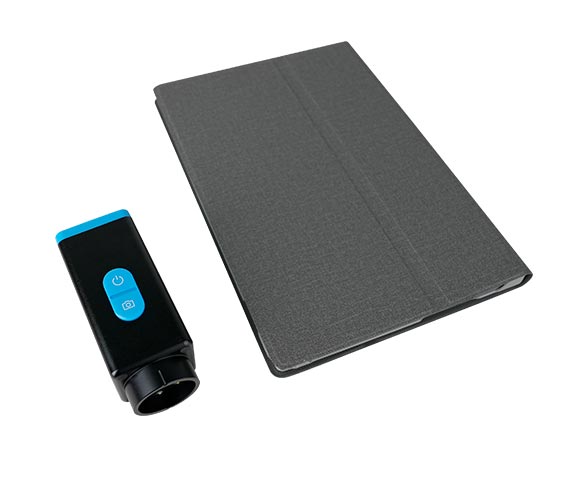

The ScanMatrix LR-FK202 Crack Width Tester is a wireless crack monitoring system supplied with a dedicated 10.1-inch tablet for real-time crack measurement, image capture and data analysis.
The system combines a high-definition microscopic probe with intelligent image processing technology to provide fast and accurate crack width measurements without the need for manual interpretation.
Typical applications include buildings, bridges, tunnels, concrete pavements, retaining walls, steel structures and long-term structural health monitoring projects.
The wireless probe automatically transmits images and measurement data to the tablet, allowing inspectors to perform efficient on-site assessments and generate professional inspection reports.
Technical Parameters
Parameter
CWC10
Measurement Range
0 ~ 10 mm
Measurement Accuracy
±0.01 mm
Storage Capacity
64 GB

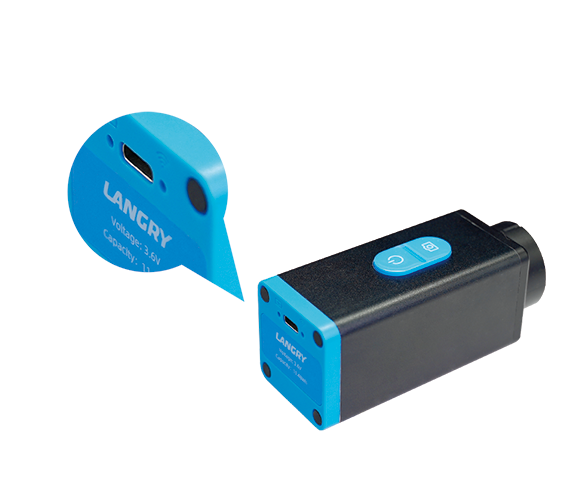

Probe Power Supply
3.85V Rechargeable Lithium Battery
Display Device
10.1-inch Tablet, 1280 × 800 Color Display
Probe Weight
200 g
Tablet Weight
725 g
Probe Dimensions
42 × 42 × 96 mm
Tablet Dimensions
247 × 167 × 15 mm
Technical Advantages
Supplied with a dedicated 10.1-inch tablet for on-site operation.
Wireless connection between probe and tablet for improved mobility.

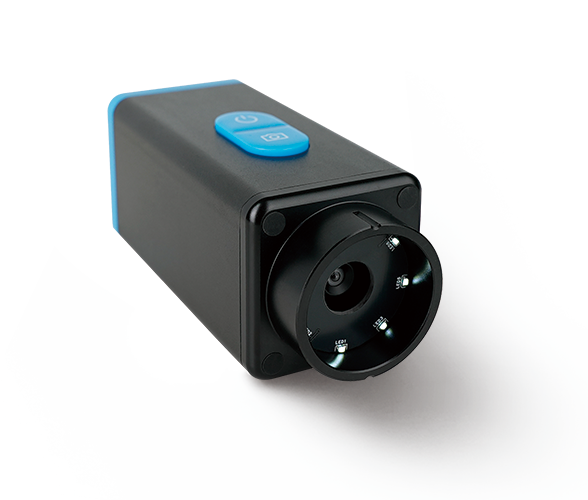

High-definition microscopic imaging with automatic crack recognition.
Real-time crack width measurement and display.
Supports long-term crack monitoring applications.

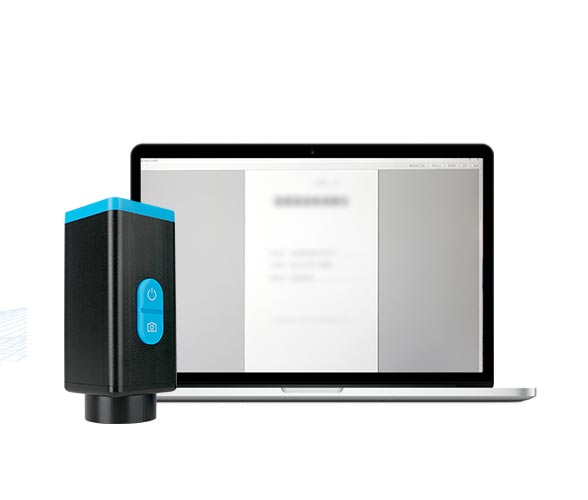

Professional analysis software for reporting and data management.
Standards Compliance
JGJ 125-2016 Technical Standard for Dangerous Building Appraisal.
GB 50204-2015 Code for Acceptance of Construction Quality of Concrete Structures.
