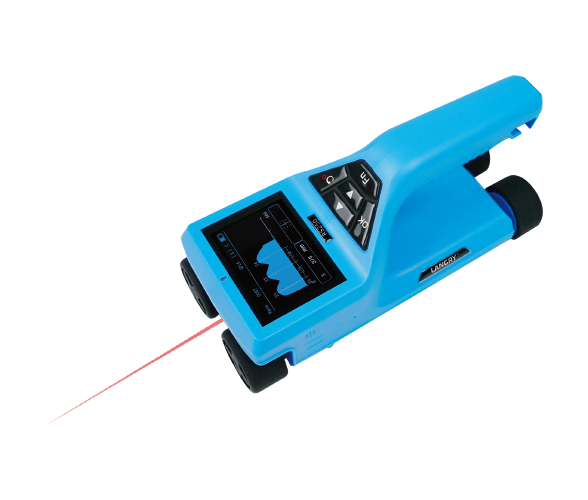

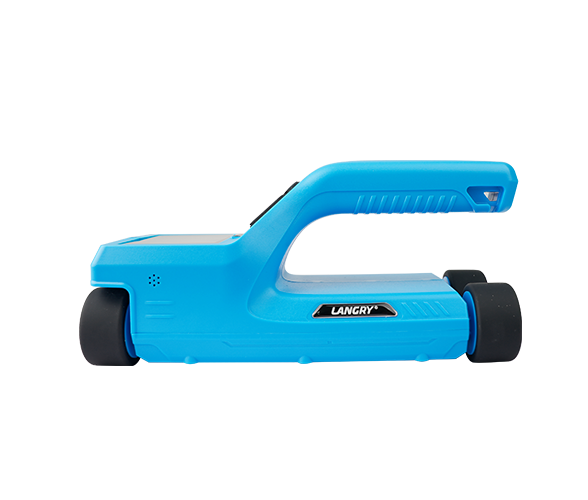

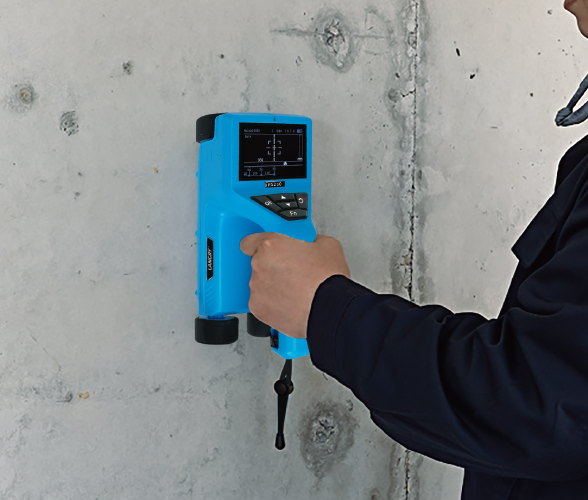

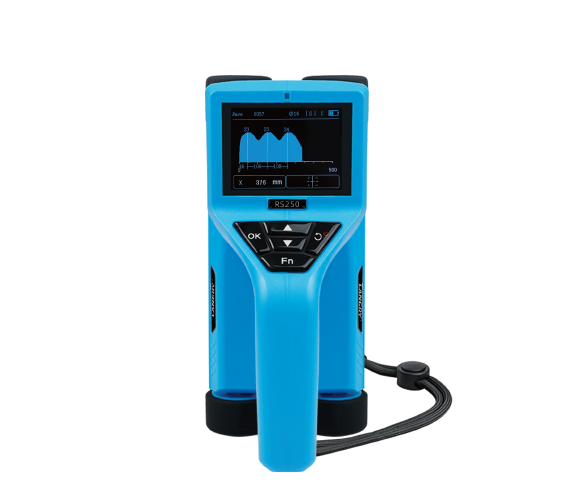

RS250 is a portable rebar scanner designed for reinforced concrete inspection and non-destructive testing workflows. It is used to locate rebars, evaluate spacing and distribution, and support diameter estimation during site investigation and quality control.
Model
RS250
Rebar diameter range
Phi 6-Phi 50 mm
Maximum detection range
First range: 1-105 mm Second range: 1-205 mm
Applicable diameter estimation range
Phi 6-Phi 50 mm
Diameter estimation deviation
Within +/-1 specification grade
Display accuracy of diameter estimation
0.1
Screen and interaction
2.8-inch color LCD with capacitive touch operation
Battery endurance
Up to 24 hours (depending on workflow and usage conditions)
Data interface
USB data transfer support
Standard
ISO/DIS 8045 International EN 12 504-2 Europe BS 1881, part 202 Great Britain DIN 1048, part 2 Germany NFP 18-417 France B 15-225 Belgium ENV 206 Europe-ASTM C 805 USA JGJ/T 23-2011 China
Technical advantages
Compact integrated sensor structure improves portability and on-site handling efficiency.
High-precision grating sensor design supports more reliable spacing and location detection.
