RS150 is a portable intelligent rebar scanner for reinforced concrete inspection. It supports rebar location, spacing analysis, concrete cover measurement, and diameter estimation in routine structural testing workflows.
Model
RS150
Rebar diameter range
Phi 6-Phi 50 mm
Maximum detection range
First range: 6-90 mm Second range: 6-190 mm
Allowable deviation of concrete cover depth
+/-1 mm: 6-80 mm +/-2 mm: 81-120 mm +/-3 mm: 121-140 mm +/-4 mm: 141-190 mm
Applicable diameter estimation range
Phi 6-Phi 50 mm
Diameter estimation deviation
Within +/-1 specification grade
Display accuracy of diameter estimation
0.1
Power supply
Li-ion rechargeable battery
Operating mode

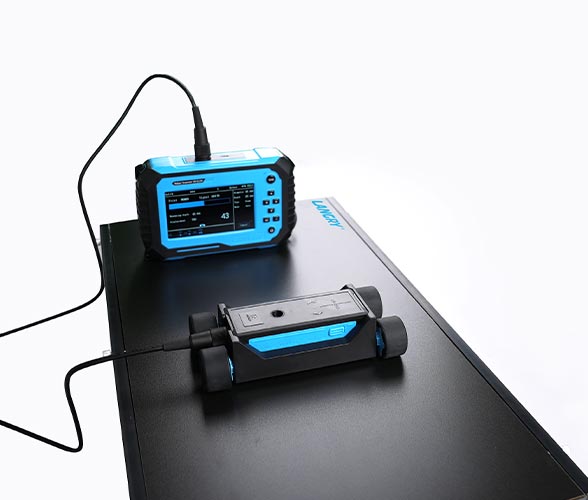

Probe standalone mode or displacement trolley mode
Standard
ISO/DIS 8045 International EN 12 504-2 Europe BS 1881, part 202 Great Britain DIN 1048, part 2 Germany NFP 18-417 France B 15-225 Belgium ENV 206 Europe-ASTM C 805 USA JGJ/T 23-2011 China
Technical advantages
Dual operation workflow: use the probe directly or with a displacement trolley.
High-precision linear Hall sensing supports stable and accurate detection.
Large-capacity rechargeable battery enables long-duration field use.
Integrated correction logic helps improve consistency of cover-depth measurement.
Designed to reduce disturbance from nearby interference during scanning.
Typical applications
Rebar location and spacing verification in slabs, beams, walls, and columns.
Concrete cover depth inspection before drilling, anchoring, or coring.
Routine quality control, acceptance inspection, and structural maintenance checks.
