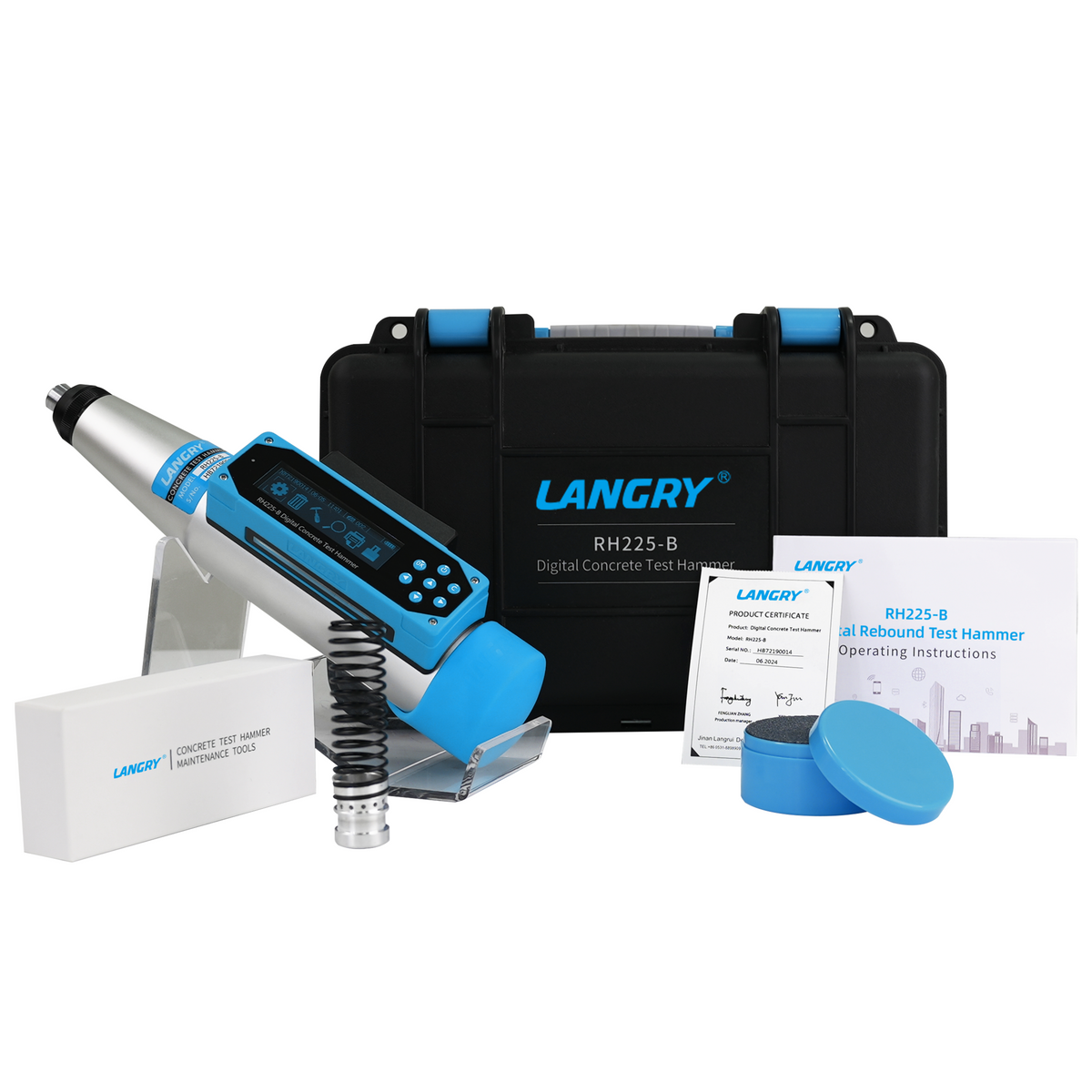

RH225-B is a digital rebound hammer engineered for fast and repeatable concrete strength checks on site.Factory calibrated with calibration certificate included. Suitable for use in NATA accredited laboratories
Model
RH225-B
Measuring range
10-70 MPa (1,450-10,153 psi)
Impact energy
2.207 J
Accuracy
<=0.5 (sampling consistency indication)
Display
2.8 in screen
Memory capacity
Up to 1,000 components, max 100 readings per component
Power supply
3.6V lithium battery, 3200 mAh
Connectivity
Built-in Bluetooth, optional portable printer support
Standard
ASTM C 805 USA
ISO/DIS 8045 International
EN 12 504-2 Europe
BS 1881, part 202 Great Britain
DIN 1048, part 2 Germany
NFP 18-417 France
B 15-225 Belgium
ENV 206 Europe
JGJ/T 23-2011 China
Key advantages
Non-contact electromagnetic sensing reduces mechanical wear and improves long-term stability.
High immunity to dust and ambient light, suitable for construction environments.
Integrated software workflow supports data transfer and report preparation.
Modular design simplifies maintenance and replacement of wear parts.
