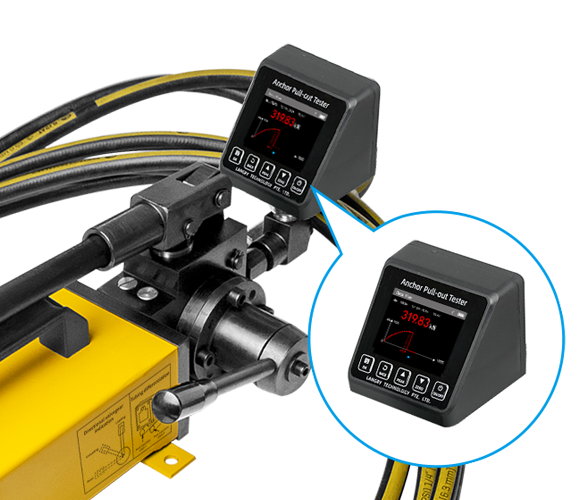

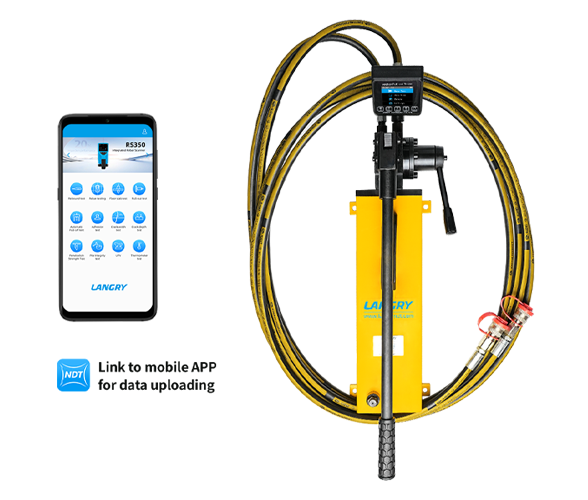

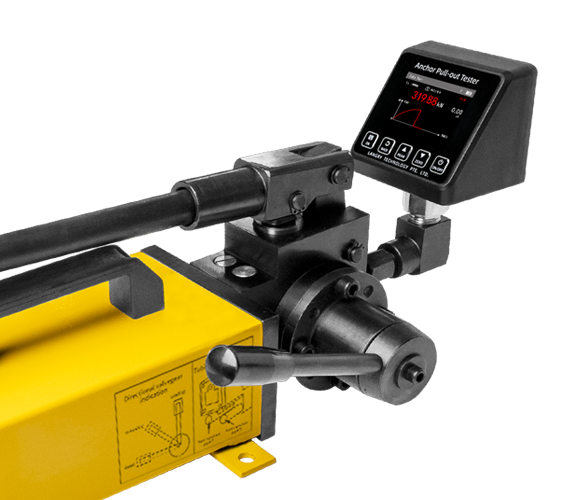

The ScanMatrix APT500 Anchor Pull-Out Tester is engineered for high-capacity pull-out testing of anchor bolts, heavy-duty fixings, post-installed rebars and structural anchorage systems.
Its 500kN capacity makes it suitable for bridges, infrastructure projects, industrial facilities and heavy construction applications.

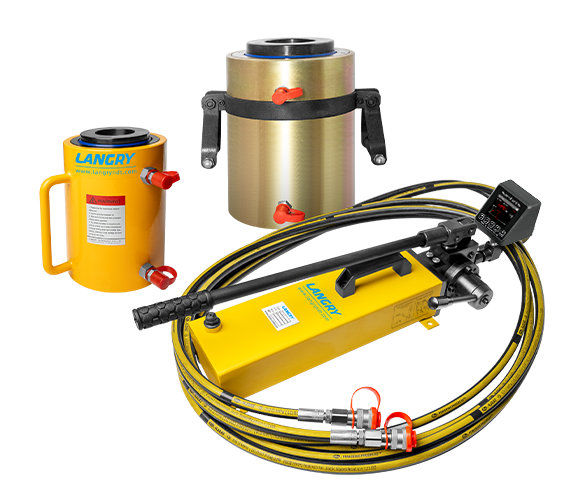

Notice: there’s only pump and hydraulic cylinders inside, accessory(anchorage, pull road, converter) are not included.
Technical Parameters
Parameter
APT500
Maximum Drawing Force
500kN
Cylinder Center Hole
60mm
Cylinder Stroke
120mm
Cylinder Weight 31*31*35cm
35kg
Hand Pump Weight 85*26*24cm
29kg
Accessories (not included)
64kg
Accuracy Level
EN ISO 7500-1 Class 1 (±1%)
Power Supply
3.7V 3200mAh Rechargeable Lithium Battery
Applicable Anchor Diameter
Ø6-40mm
Pull Rod
M39
Converter
M6-36
Technical Advantages
Designed for heavy-duty anchorage testing applications.
