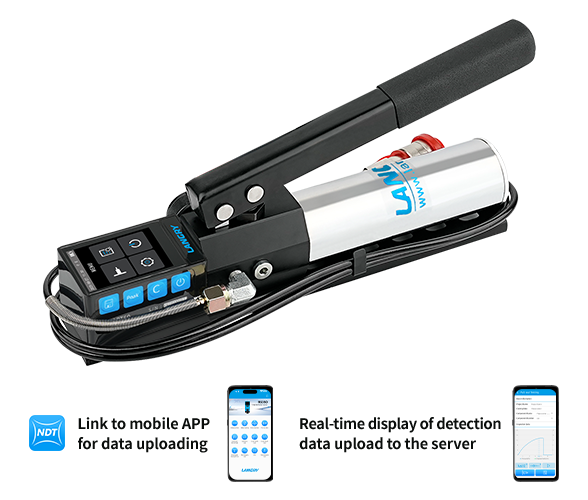

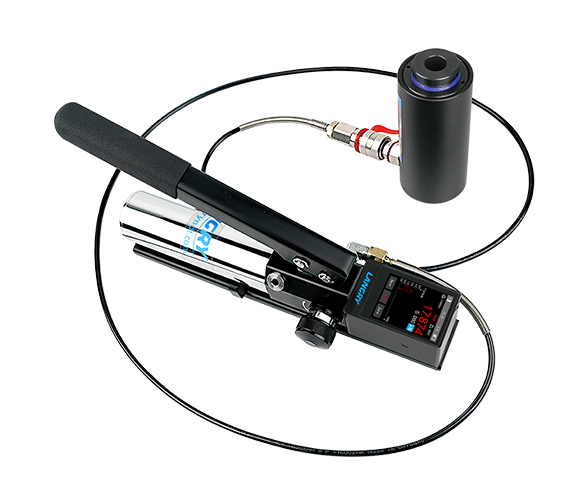

APT50 is a compact anchor pull-out tester for on-site anchorage verification. It is suitable for testing anchors, rebars, and expansion bolts, and can also support tensile checks for curtain wall fixing points.
Model
APT50
Cylinder center hole
18 mm
Cylinder stroke
50 mm
Measuring range
0-50 kN
Cylinder weight
1.5 kg
Common anchorage
Phi 6-Phi 12
Pull rod
M12
Converter
M6-M10
Technical advantages
High-strength aluminum body with good pressure resistance.
Stable hydraulic system with low leakage risk.

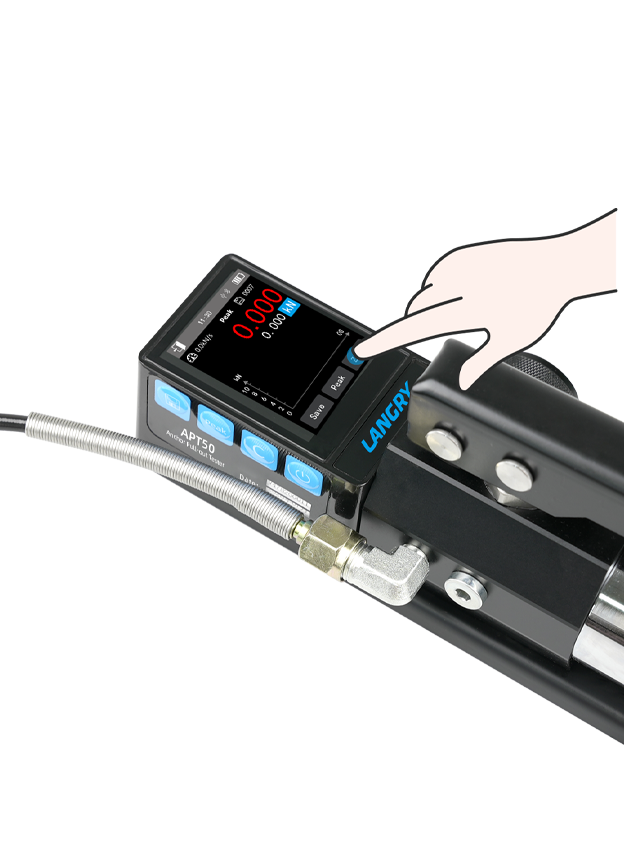

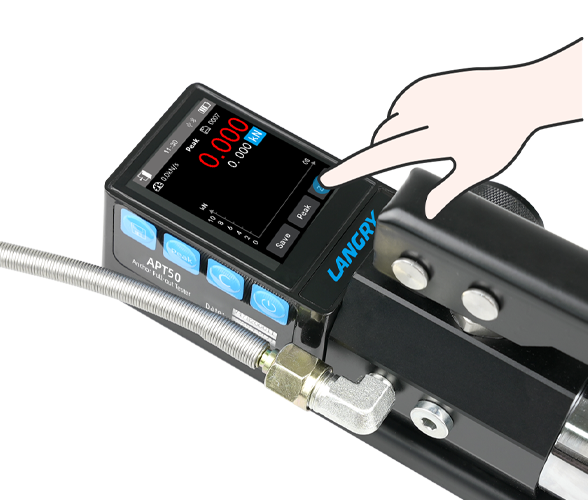

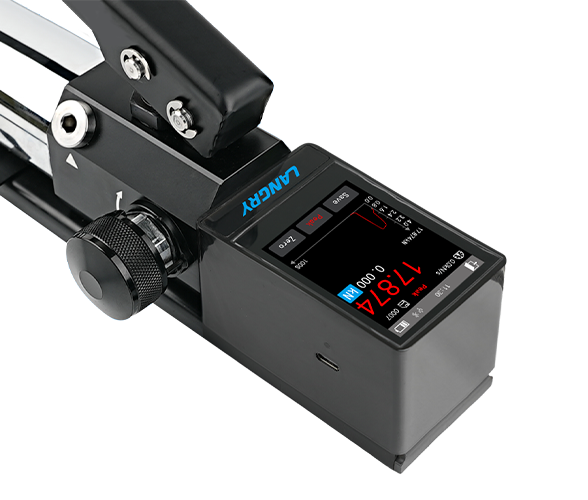

Digital gauge with peak hold and clear real-time display.
Supports force-time curve and load display on one screen.
Built-in data memory for convenient record keeping.
