Product Overview

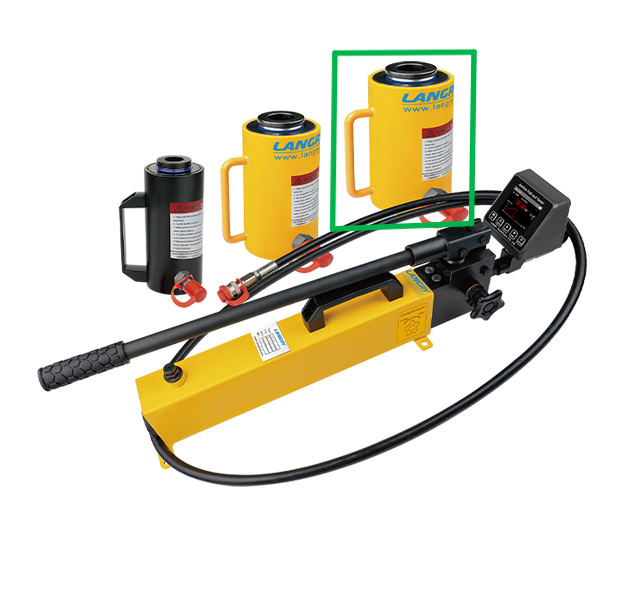

The ScanMatrix APT300 Anchor Pull-Out Tester provides reliable pull-out testing for anchor bolts, chemical anchors, expansion anchors, rebars and façade fixing systems.
Delivering a maximum test force of 300kN, it is the preferred solution for most construction, infrastructure and structural testing applications.
Technical Parameters
| Parameter |
APT300 |
| Maximum Drawing Force |
300kN |
| Cylinder Center Hole |
45mm |
| Cylinder Stroke |
70mm |
| Hydraulic Cylinder Weight 31*31*35cm |
23kg |
| Hand Pump Weight 85*22*24cm |
22kg |
| Accessories (not included) |
38kg |
| Accuracy Level |
EN ISO 7500-1 Class 1 (±1%) |
| Power Supply |
3.7V 3200mAh Rechargeable Lithium Battery |
| Applicable Anchor Diameter |
Ø6-32mm |
| Pull Rod |
M30 |
| Converter |
M6-27 |
Technical Advantages
- Robust hydraulic cylinder made from high-strength steel.
- Peak hold and automatic shutdown functions.
- Memory capacity for 500 test records.

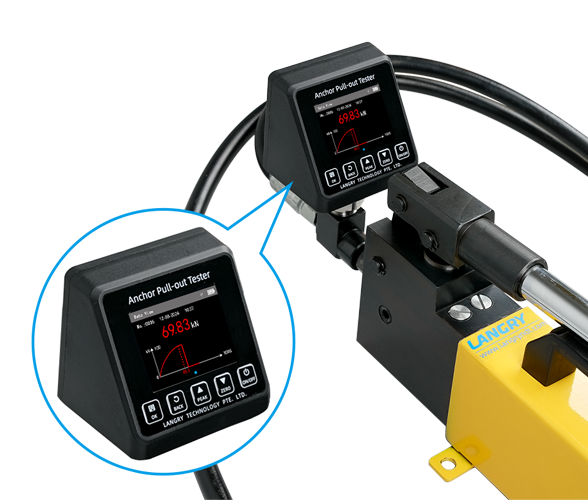

- Wide-angle backlit LCD display.
- High precision measurement performance.
- Reliable hydraulic pressure stability.
