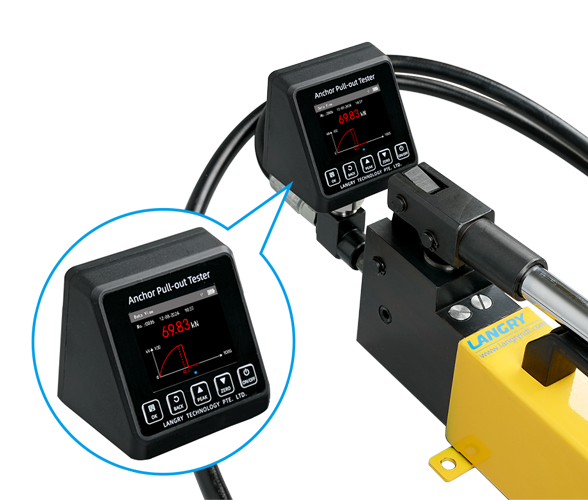

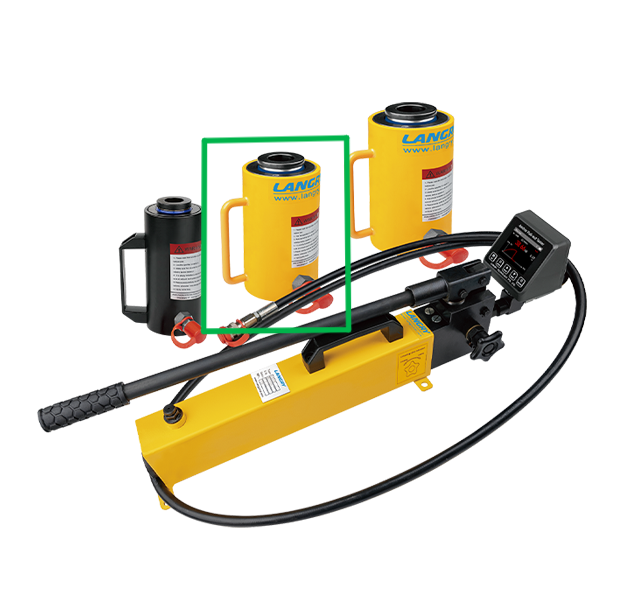

The ScanMatrix APT200 Anchor Pull-Out Tester is designed for pull-out testing of anchor bolts, chemical anchors, expansion anchors, post-installed rebars and structural fixing systems.
With a maximum test force of 200kN, the APT200 is suitable for general construction inspection, anchorage verification and routine quality assurance applications.
Technical Parameters
Parameter
APT200
Maximum Drawing Force
200kN
Cylinder Center Hole
34mm
Cylinder Stroke
70mm
Hydraulic Cylinder Weight
17.8kg
Hand Pump Weight
22.5kg
Accessories (not included)
22kg
Accuracy Level
EN ISO 7500-1 Class 1 (±1%)
Power Supply
3.7V 3200mAh Rechargeable Lithium Battery
Applicable Anchor Diameter
Ø6-25mm
Pull Rod
M24
Converter
M6-22
Technical Advantages
Heavy-duty steel construction for demanding environments.
