The ScanMatrix APT1000 Anchor Pull-Out Tester is a high-capacity hydraulic testing system for large anchor bolts, heavy-duty structural fixings, bridge anchors and critical infrastructure applications.
With an impressive maximum test force of 1000kN, the APT1000 is designed for demanding structural verification and engineering testing projects.
Technical Parameters
Parameter
APT1000
Maximum Drawing Force
1000kN
Cylinder Center Hole
86mm
Cylinder Stroke
150mm
Hydraulic Cylinder Weight 40*34*41cm
65.8kg
Hand Pump Weight 85*26*35cm
31.4kg
Accessories (not included)
79.8kg
Accuracy Level
EN ISO 7500-1 Class 1 (±1%)
Power Supply
3.7V 3200mAh Rechargeable Lithium Battery
Applicable Anchor Diameter
Ø25-50mm
Pull Rod
M45
Converter
M20-42
Technical Advantages
Ultra-high capacity system for large-scale structural testing.

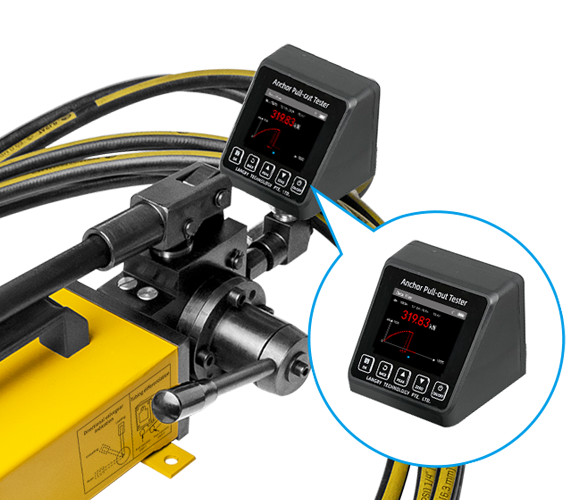

Digital force measurement with peak hold function.
Stores up to 500 measurement records.
Large backlit LCD display for field operations.
High accuracy compliant with EN ISO 7500-1 Class 1.
Reliable hydraulic system with excellent pressure stability.
