Product Overview

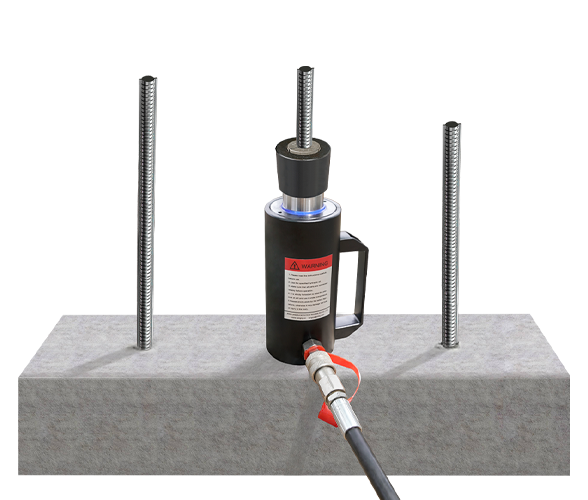

APT100 Anchor Pull-Out Tester designed for the verification of anchor bolts, anchors, expansion anchors, rebar installations.
Maximum test force is 100kN, suitable for Pull Rod with a 18mm diameter. See Accessories.
Technical Parameters
| Parameter |
APT100 |
| Maximum Drawing Force |
100kN |
| Cylinder Center Hole |
27mm |
| Cylinder Stroke |
60mm |
| Hydraulic Cylinder Weight 26*26*22cm |
8.35kg |
| Hand Pump Weight 85*25*25cm |
22.4kg |
| Accessories: Anchorages, Pull Rod, Converters (not included) |
14.8kg |
| Accuracy Level |
EN ISO 7500-1 Class 1 (±1%) |
| Power Supply |
3.7V 3200mAh Rechargeable Lithium Battery |
| Common Anchorages |
Ø6-20mm |
| Pull Rod |
M18 |
| Converters |
M6-20 |
Technical Advantages
- High-strength steel cylinder for long service life.

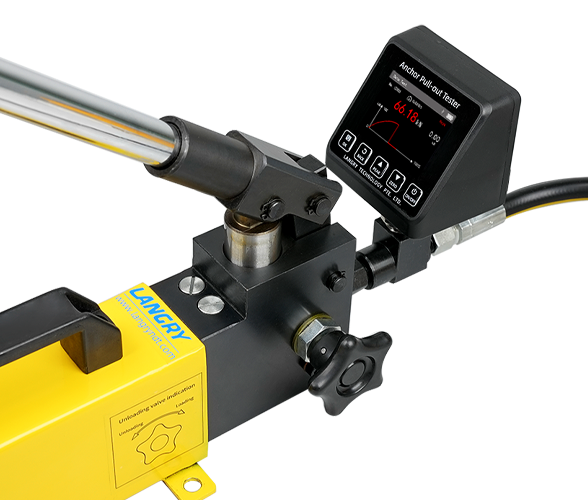

- Digital gauge with peak hold and automatic shutdown.
- Stores up to 500 test records.
- Backlit LCD display for easy reading on site.
- High measurement accuracy compliant with EN ISO 7500-1.
- Leak-free hydraulic system for stable pressure output.
